SBC09, an Emulator for a 6809-Based Single Board Compuer.

L.C. Benschop

May 31, 2018

Contents

1 Introduction
 1.1 A Bit of Background on SBCs.
 1.2 The Emulated System.
2 Building the Programs.
3 The 6809 Assembler a09.
4 The Virtual SBC v09.
5 Machine Language Monitor.
  5.0.1 Getting Started.
 5.1 Use of the monitor commands
  5.1.1 Single Letter Commands
  5.1.2 S-Records Related Commands.
  5.1.3 X-Modem Related Commands.
 5.2 Memory Map
 5.3 Operating System Facilities
 5.4 Extending the built-in Assembler
6 The Forth Language.
7 The BASIC Interpreter.
8 History of the Project.
 8.1 Introduction.
 8.2 The 6809 Emulator in Forth.
 8.3 The Assembler and Simulator in C.
 8.4 The Virtual SBC.

Chapter 1
Introduction

The sbc09 package contains an emulator of a 6809-based single board computer that runs under UNIX. It contains all the programs needed to work with the emulator, such as the emulator itself, an assembler, a monitor program, a BASIC interpreter, a Forth interpreter, several example programs and several tools needed to build the programs. The program should work under most more-or-less POSIX-compliant versions of UNIX and they were developed under Linux. Of course I believe that the programs that currently run on the emulator would also run on a real 6809 machine.

1.1 A Bit of Background on SBCs.

In the seventies you could buy single board microcomputers that had a hexadecimal keypad and 7-segment displays. These computers typically had less than 1 kilobyte of RAM and a simple monitor program in ROM. An interface to a cassette recorder (or paper tape reader/writer) and a terminal was possible, but not standard. The typical way to program the machine was entering hexadecimal machine codes on the keypad. Machine code was the only language in which you could program them, especially if you only had a hexadecimal keypad and 7-segment led displays. You typically used these machines to experiment with hardware interfacing, as games and calculations were a bit limited with only six 7-sengment digits.

Next came simple home computers, like the TRS80, the Apple ][ and the Commodore PET. These machines had BASIC in ROM and they used a simple cassette recorder to store data. These computers had a TV or a low quality monitor as display and a QWERTY keyboard. These machines could be upgraded with a floppy disk drive and a printer and then they could be used for professional work. These machines had 4 to 64 kilobyts of memory. Apart from assembly language you could use BASIC, Forth and sometimes Pascal to program these machines. Most useful programs (and the best games) were programmed in assembly language. Many of these machines had BASIC in ROM and no machine code monitor. You had to load that separately.

Today we have personal computers that run DOS, Windows, UNIX or something else. New computers have 4 to 16 megabytes of RAM and hard disks of more than 500 Megabytes. Apart from having in the order of 1000 times more storage, they are also 1000 times faster than the old 8-bit home computers. Programming? You can use Visual BASIC, C++ and about every other programming language on the planet. But programs have become bigger and bigger. Programming is not the same as it was before.

I guess there is some demand for small 8-bit computer systems that are simple to build, easy to interface to all kinds of hobby projects, fun to program and small enough to integrate into a home-built project. Do we want to use hexadecimal keyboards and 7-segment displays? I guess not many people want to use them. Do we want to use a cassette recorder for data storage and a TV as a display? Not me. And if you build your own 8-bit microprocessor, do you want to waste your time and money on a hexadecimal keypad or a cassette interface that you do not like to use and that you do not need anyway? PCs of five years ago are more than adequate to run an editor, a terminal program and a cross assembler for your favourite 8-bit processor. The terminal program can then be used to send the programs to the 8-bit micro. If you equip an 8-bit system with some static CMOS RAM, a serial interface and a monitor in ROM, you can use the keyboard, hard disk and monitor of your PC for program development and the 8-bit micro can be disconnected from the PC and do its task, once it is programmed.

Cross development is nothing special. How do you think the microprocessor in you microwave was programmed? But it is not practical for a hobbyist to program an EPROM for each program change. Professional developers of embedded processors have expensive tools, like ROM emulators, processor emulators etc. to see what the processor is doing on its way to the next crash. For a hobbyist it is much more practical to have a slightly more expensive embedded computer that you can run an interactive debugger on. And you are not even limited to assembly language. If you have 32k ROM you can have both the monitor program and a BASIC interpreter and some aplication code in ROM. Nothing prevents you from having Forth as well.

1.2 The Emulated System.


PICT

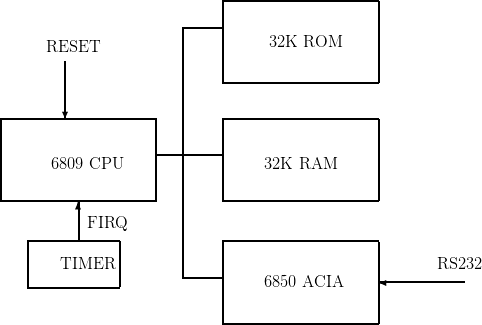

Figure 1.1: Block Diagram of SBC.


The program sbc09 emulates the abovementioned single board computer plus the terminal program that communicates with it.

Chapter 2
Building the Programs.

Chapter 3
The 6809 Assembler a09.

The assembler is a09. Run it with

 a09 [-l listing] [-o object|-s object] source

Source is a mandatory argument. The -l listing and -o or -s object arguments are optional. By default there is no listing and the object file is the sourcefile name without an extension and if the source file name has no extension it is the source file name with .b extension.

A09 recognizes standard 6809 mnemonics. Labels should start in the first column and may or may not be terminated by a colon. Every line starting with a non-alphanumeric is taken to be a comment line. Everything after the operand field is taken to be comment. There is a full expression evaluator with C-style operators (and Motorola style number bases).

There are the usual pseudo-ops such as ORG EQU SET SETDP RMB FCB FDB FCC etc. Strings within double quotes may be mixed with numbers on FCB lines. There is conditional assembly with IF/ELSE/ENDIF and there is INCLUDE. The assembler is case-insensitive.

The object file is either a binary image file (-o) or Motorola S-records (-s). In the former case it contains a binary image of the assembled data starting at the first address where something is assembled. In the following case

ORG 0
VAR1 RMB 2
VAR2 RMB 2

ORG $100
START LDS #$400
        ...

the RMB statements generate no data so the object file contains the memory image from address $100.

The list file contains no pretty lay-out and no pagination. It is assumed that utilities (Unix pr or enscript) are available for that.

There are no macros and no linkable modules yet. Some provisions are taken for it in the code.

After the assembler has finished, it prints the number of pass 2 errors. This should be zero. So if you see

  0 Pass 2 Errors.

then you are lucky.

Chapter 4
The Virtual SBC v09.

The simulator is v09. Run it with

  v09 [-t tracefile [-tl tracelo] [-th tracehi]] [-e escchar]

tracelo and tracehi are addresses. They can be entered in decimal, octal or hex using the C conventions for number input.

If a tracefile is specified, all instructions at addresses between tracelo and tracehi are traced. Tracing information such as program location, register contents and opcodes are written to the trace file.

escchar is the escape character. It must be entered as a number. This is the character that you must type to get the v09 prompt. This is control-] by default. (0x1d)

The program loads its ROM image from the file v09.rom, which is a 32 kiliobyte binary file. This file should have been generated by the Makefile. The program starts executing at the address found at $FFFE in the ROM, just like a real 6809 would do on reset.

The address map is as follows.

$0000–$7FFF
RAM.
$8000–$FFFF
ROM (except the I/O addresses). These addresses are write-protected.
$E000–$E0FF
I/O addresses. Currently only one ACIA is mapped.

At addresses $E000 and $E001 there is an emulated serial port (ACIA). All bytes sent to it (or read from it) are send to (read from) the terminal and sometimes to/from a file. Terminal I/O is in raw mode.

If you press the escape char, you get the v09 prompt. At the prompt you can enter the following things.

X
to exit the simulator.
R
to reset the emulated 6809 (very useful).
Lfilename
(no space in between) to log terminal output to a file. Control chars and cr are filtered to make the output a normal text file. L without a file name stops logging.
Sfilename
to send a specified file to the simulator through its terminal input. LF is converted to CR to mimic raw terminal input.
Ufilename
(terminal upload command) to send a file to the 6809 using the X-modem protocol. The 6809 must already run an X-modem receiving program.
Dfilename
(terminal download command) to receive a file from the 6809 using the X-modem protocol. The 6809 must already run an X-modem sending program.

All of these commands, except the R command, can be seen as commands of the communication program that is used to access the single board computer. The R command is a subsitute for pushing the RESET button on the emulated computer.

Chapter 5
Machine Language Monitor.

The program monitor.asm is a program that is intended to be included in the ROM of a 6809 based single board computer. The program allows a user to communicate with the single board computer through a serial port. It allows a user to enter machine code, examine memory and registers, to set breakpoints, to trace a program and more. Furthermore, data can be sent to and be received from the single board computer through the X-MODEM protocol.

5.0.1 Getting Started.

If you start v09 with the standard ROM, then you will run the monitor program. If all goes well you see something like

Welcome to BUGGY 1.0

and you can type text. Excellent, you are now running 6809 code.

The following example programs you can run from the 6809 monitor. All of them start at address $400. For example to run the program bin2dec you type.

XL400

Then press your escape character (default is control-] ).

Then at the v09 prompt type

ubin2dec

Now you see some lines displaying the progress of the X-modem session. If that is finished, you type

G400

Now it runs and exits to the monitor with SWI, so that the registers are displayed.

cond09.asm
cond09.inc
Nonsense program to show conditional assembly and the like.
bench09.asm
Benchmark program. Executes tight loop. Takes 83 secs on 25 MHz 386. Should take about 8 sec. on 1MHz real 6809. :-(
test09.asm
Tests some nasty features of the 6809. Prints a few lines of PASSED nn and should never print ERROR nn.
bin2dec.asm
Unusual way to convert numbers to decimal using DAA instruction. Prints some test numbers.
basic.asm
Tiny BASIC by John Byrns. Docs are in basic.doc. To test it start the monitor and run basic.

Then press your escape char. At the v09 prompt type: sexampl.bas

Now a BASIC program is input. Type RUN to run it.

Leave BASIC by pressing the escape char and entering x at the prompt.

5.1 Use of the monitor commands

5.1.1 Single Letter Commands

D
Dump memory.

Syntax:

Daddr,len
Hex/ascii dump of memory region.
Daddr
length=64 bytes by default.
D
address is address after previous dump by default.

Examples:

DE400,100

Dump 256 bytes starting at $E400

D

Dump the next 64 bytes.

E
Enter data into memory,
Eaddr bytes
Enter hexadecimal bytes at address.
Eaddr”ascii”
Enter ascii at address.
Eaddr
Enter interactively at address (until empty line).

Examples:

E0400 86449D033F

Enter the bytes 86 44 9D 03 3F at address $400.

E5000"Welcome"

Enter the ASCII codes of ”Welcome” at address $400.

F
Find string in memory.

Syntax:

Faddr bytes
Find byte string string from address.
Faddr”ascii”
Find ASCII string.

Find the specified string in memory, starting at the specified address. The I/O addresses $E000-$E0FF are skipped. The addresses of the first 16 occurrences are shown.

Example:

FE400"SEX"

Search for the word ”SEX” starting in the monitor.

M
Move memory region.
Maddr1,addr2,len
Move region of memory from addr1 to addr2. If addr2 is 1 higher than addr1, a region is filled.

Example:

 M400,500,80

Move 128 bytes from address $400 to $500.

A
Assemble instructions.

Syntax:

Aaddr
Enter line-by-line assembler.

You are in the assembler until you make an error or until you enter an empty line.

Example:

A400
LDB #$4B
JSR $03
SWI
<empty line>

U
Disassemble instructions.

Syntax:

Uaddr,len
Disassemble memory region.
Uaddr
(disassemble 21 bytes)
U

Examples:

UE400,20

Diassemble first 32 bytes of monitor program.

U

Disassemble next 21 bytes.

B
Set, clear and show breakpoints.

Syntax:

Baddr
Set/reset breakpoint at address.
B
Display active breakpoints.

Four breakpoints can be active simultaneously.

Examples:

B403
B408

Set the breakpoints at the addresses $403 and $408.

B

Show the breakpoints.

B403

Remove the breakpoint at $403.

J
Call a subroutine.
G
Go to specified address.

Syntax:

Jaddr
JSR to specified address.
Gaddr
Go to specified address.
G
Go to address in PC register.

The registers are loaded from where they are saved (on the stack) and at the breakpoints SWI instructions are entered. Next the code is executed at the indicated address. The SWI instruction (or RTS for the J command) returns to the monitor, saving the registers.

H
Calculate HEX expression.

Syntax:

Hhexnum{(+—-)hexnum}
Calculate simple expression in hex with + and -

Examples:

H4444+A5
H4444-44F3

P
Put a temporary breakpoint after current instruction and exeucte it,

P is similar to T, because it usually executes one instruction and returns to the monitor after it. That does not work for jumps though. Normally you use P only with JSR instructions if you want to execute the whole subroutine without single-stepping through it.

R
Display or modify registers.

Syntax:

R
Register display.
Rregvalue
Enter new value into register Supported registers: X,Y,U,S,A,B,D (direct page),P (program counter),C (condition code).

The R command uses the saved register values (on the stack). There are some restrictions on changing the S register.

Examples:

R

Display all registers.

RB03
RP4444

Load the B register with $03 and the program counter with $4444.

T
Single step trace.
I
Show the contents of one address.

Syntax:

Iaddr
Display the contents of the given address. (used to read input port)

Example:

  IE001

Show the ACIA status.

5.1.2 S-Records Related Commands.

S1bytes
Enter Motorola S records.
S9bytes
Last S record in series.

S records are usually entered from a file, either ASCII transfer (S command from the v09 prompt) or X-MODEM transfer (XX command in monitor, U command from v09 prompt). Most Motorola cross assemblers generate S records.

SSaddr,len
Dump memory region as Motorola S records.

These S records can be loaded later by the monitor program.

Usually you capture the S records into a file (use L command at v09 prompt) or use XSS instead. The XSS command is the same as SS, except that it outputs the S records through the X-modem protocol (use D command at v09 prompt).

SOaddr
Set origin address for S-record transfer.

Before entering S records, it sets the first memory address where S records will be loaded, regardless of the address contained in the S records.

Before the SS command, it sets the first address that will go into the S records.

Examples.

SO800
S1130400etc...

Load the S records at address $800 even though the address in the S records is $400

SO8000
SS400,100

Save the memory region of 256 bytes starting at $400 as S records. The S records contain addresses starting at $8000.

5.1.3 X-Modem Related Commands.

XLaddr
Load binary data using X-modem protocol

Example:

XL400

Type your escape character and at the v09 prompt type

ubasic

to load the binary file ”basic” at address $400.

XSaddr,len
Save binary data using X-modem protocol.

Example:

XS400,100

to save the memory region of 128 bytes starting at $400 Type your escape character and at the v09 prompt type:

dfoo

Now the bytes are saved into the file ”foo”.

XSSaddr,len
Save memory region as S records through X-modem protocol.

See SS command for more details.

XX
Execute commands received through X-modem protocol This is usually used to receive S-records.

Example:

XX

Now press the escape character and at the v09 prompt type

usfile

where sfile is a file with S-records.

XOnl,eof
Set X-modem text output options, first number type of newline. 1=LF, 2=CR, 3=CRLF, second number filler byte at end of file (sensible options include 0,4,1A) These options are used by the XSS command.

Example: Under a UNIX system you want X-modem’s text output with just LF and a filler byte of 0. Type:

XO1,0

5.2 Memory Map

5.3 Operating System Facilities

getchar
address $00.
putchar
address $03.
getline
address $06.
putline
address $09.
putcr
address $0C.
getpoll
address $0F.
xopenin
address $12.
xopenout
address $15.
xabortin
address $18.
xclosein
address $1B.
xcloseout
address $1E.
delay
address $21. On input the D register contains the number of timer ticks to wait. Each timer tick is 20ms.

5.4 Extending the built-in Assembler

Chapter 6
The Forth Language.

kernel09 and the *.4 files. FORTH for the 6809. To run it, type
            XX

            Then press the escape char and at the v09 prompt type

            ukernel09

            Then type

            G400

    From FORTH type

            XLOAD

            Then press your escape char and at the v09 prompt type

            uextend09.4

            From FORTH type

            XLOAD

            Then press your escape char and at the v09 prompt type

            utetris.4

      From FORTH type

    TT

            And play tetris under FORTH on the 6809!

Chapter 7
The BASIC Interpreter.

Chapter 8
History of the Project.

8.1 Introduction.

Of all the 8-bit home computers only a few had the Motorola 6809 CPU, the most famous of which was the Tandy Color Computer. Then there was its clone (from Wales) the Dragon and there was an old obscure SuperPet that I have never seen. The 6809 was the 8-bit processor finally done right, but it came a bit too late to have a real influence on the market.

The book that raised my enthousiasm for the Motorola 6809 processor was: Lance A. Leventhal, “6809 Assembly Language Programming”, 1981 Osborne/McGrawhill. ISBN 0-07-931035-4. I borrowed it several times from the university library and finally I bought my own copy.

The first sentence on the back of that book reads:

While everyone’s been talking about new 16-bit microprocessors, the 6809 has emerged as the important new device.

Though it was not the processor that changed the world, it certainly was the processor that changed my idea of what a good instruction set should look like. Before that I thought that the Z80 was superior to everything else on the planet, at least superior to every other 8-bit processor.

It was in April 1987. I borrowed the book for the first time and I had just written a Forth interpreter for my Z80 machine. It struck me that the following 7-instruction sequence on a Z80

EX DE,HL
LD E,(HL)
INC HL
LD D,(HL)
INC HL
EX DE,HL
JMP (HL)

could be replaced by just one instruction on the 6809.

JMP [,Y++]

BTW the above instructions are the heart of a Forth interpreter and making them more efficient has a tremendous effect on efficiency.

8.2 The 6809 Emulator in Forth.

The years went by and I had bought an XT compatible computer in 1988. I didn’t buy a 6809 system though I could have done so. But it would either be too expensive or I would have to build it myself (I wasn’t too handy with soldering) or it would be a primitive machine like the Tandy Color Computer without expansions and I didn’t like to use cassettes and a 32-column display.

In 1989 I saw a 6502 simulator at a meeting of our Forth club. One could interactively enter hex codes, page through memory, modify registers, trace intructions etc. I just got to have this, but for a 6809 instead.

Around Christmas of that year I wrote a 6809 Forth assembler and an interactive simulator, like the one I had seen on the club meeting. Everything was written in F-PC, a very comprehensive Forth system for the PC.


       0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F 0123456789ABCDEF
0000  10 8E 00 40 E6 A0 D7 80 8E 00 81 3A 5D 27 07 A6 ...@f W ...:]’.&
0010  A0 A7 82 5A 26 F9 7E FF FF 00 00 00 00 00 00 00  ’.Z&y~  .......
0020  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0030  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0040  05 46 4F 52 54 48 00 00 00 00 00 00 00 00 00 00 .FORTH..........
0050  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0060  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0070  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0080  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0090  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00A0  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00B0  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00C0  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00D0  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00E0  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00F0  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
CC=00000000  A=$00 B=$00 DP=$00 X=$0000 Y=$0000 U=$0000 S=$0000
   EFHINZVC PC=$0000 LDY # $0040


Figure 8.1: Screen snapshot of the Forth-based 6809 simulator.


I even made a start with writing an implementation of Forth for it, but the obvious lack of speed (among other things) witheld me from finishing it. I had a fairly complete set of assembly routines though. The estimated speed was around one thousand instructions per second, good for an equivalent processor speed of around 4kHz.

In May 1992 I changed my trusted 8MHz Turbo XT for a blistering fast 25MHz 80386 and it could run the simulator more than 5 times as fast. But then I wasn’t really working on it. In the summer of 1992 I changed to Linux, which I have been using ever since.

Around the summer of 1993 I was working with pfe, a brand new Forth system for Unix written by Dirk Zoller. It had reached such state of completeness and usability that porting the 6809 simulator to it would be feasible. I ported it and by doing so I regained interest in the 6809 processor. PFE is written in C instead of assembler and at least on the 80386 it is considerably slower than a Forth written in Assembler, like FPC. My simulated processor speed was around 5kHz, nothing to write home about. It was faster than on the XT, but not much.

8.3 The Assembler and Simulator in C.

The switch from Forth to C was caused by the fact that I wanted a traditional 6809 assembler, instead of the ’Forth’ assembler, in which the syntax is slightly tweaked to make the thing easy to implement in Forth and easy to use within Forth. In the fall of 1993 I wrote a traditional two pass assembler in a few days. It worked more or less, but only recently it has become bug-free in that it assembles all the instructions and all the addressing modes (even PC relative) without error.

Now that I had a real assembler, I could write real 6809 assembly programs, such as a BASIC interpreter (maybe kidding) or a monitor program or god knows what. If I would ever run real code on that 6809 simulator, I had to increase its speed considerably. So I wrote a very straightforward 6809 simulator in C using tables of function pointers. It did really well in terms of speed, I could reach an equivalent processor clock speed of around 200kHz. The C simulator didn’t have any fancy display, memory edit or single step functions. Its only I/O was through the SWI2 instruction for character output and SWI3 for character input, something I had added to the Forth-based simulator quite some time ago.

One afternoon in optimized hack mode brought me a crude port of E-Forth, a tiny and very slow (most was interpreted, very few assembler words) implementation of Forth. The original was written in MASM for the 8086 and other ports (like the 8051) wre already around. That was the first time I had Forth on an emulated 6809. BTW this Forth would also run, or should I say crawl, on the Forth-based simulator.

I released the assembler, simulator and EForth on alt.sources in November 1993.

Of course I also wrote some test and toy programs (what about a program to convert binary numbers to decimal using that oddball DAA instruction?).

In the spring of 1994 I picked up that old TINY BASIC interpreter written by John Byrns. And tiny it was. Not even arrays were supported. I ported it to my simulator and found some bugs, both in my simulator and in TINY BASIC itself.

I made some improvements to the 6809 simulator. Now I could send ASCII files to it and log the output to another ASCII file. That way I could ’load’ and ’save’ BASIC programs for one thing. Further I had a trace facility to write a trace of all the instructions in a certain address range to a file. Last I cleaned up the I/O and signal handling somewhat, making it portable across several Unix versions.

That version of the software, along with some example programs, was also released on alt.sources. The assembler implemented includes and conditional assembly in that version.

8.4 The Virtual SBC.

That blistering fast 80386 that I bought back in 1992 has become slow as molasses. It has actually become slower since the memory upgrade with slow memory (it was cheap) that necessitated an extra wait state. Fortunately I recently pruchased a Pentium.

At the moment I actually have plans to build (or have somebody build for me) a single board computer containing a 6809. I would like to have 32k RAM plus 32k EPROM. I definitely like to have a monitor program with the features I want. Hence another project was born, the virtual SBC that I could prototype my monitor ROM and some other software on.

The virtual SBC emulates a single board computer that communicates with a PC through an ACIA. On that PC there runs a simple terminal program that supports XMODEM file transfer. Things I recently did.

Finally I wrote a real 6809 Forth, based on some other Forth I wrote for an imaginary stack machine. Those old dusty primitives that I had written back in 1990 proved very useful now. This Forth can load programs through XMODEM too. It can recompile (metacompile) itself and, very importantly, it runs tetris! (crawls on the 386) This is the tetris implementation written in ANSI Forth by Dirk Zoller and it is used as a test program. Next I have to make this Forth ROM-able.

What else will go into that 32k ROM area? The monitor will be around 7k, 1k is reserved for the I/O space. Forth (with its own Forth assembler) will take about 12k, 8k without. A few additional k could be used for a ’real’ assemler, but I doubt I will ever use that. A cross assembler is much more convenient. BASIC no doubt. But I’m afraid I’ll have to write it myself, more so as I want to have source code of all my 6809 stuff. I already have the floating point routines for it.
